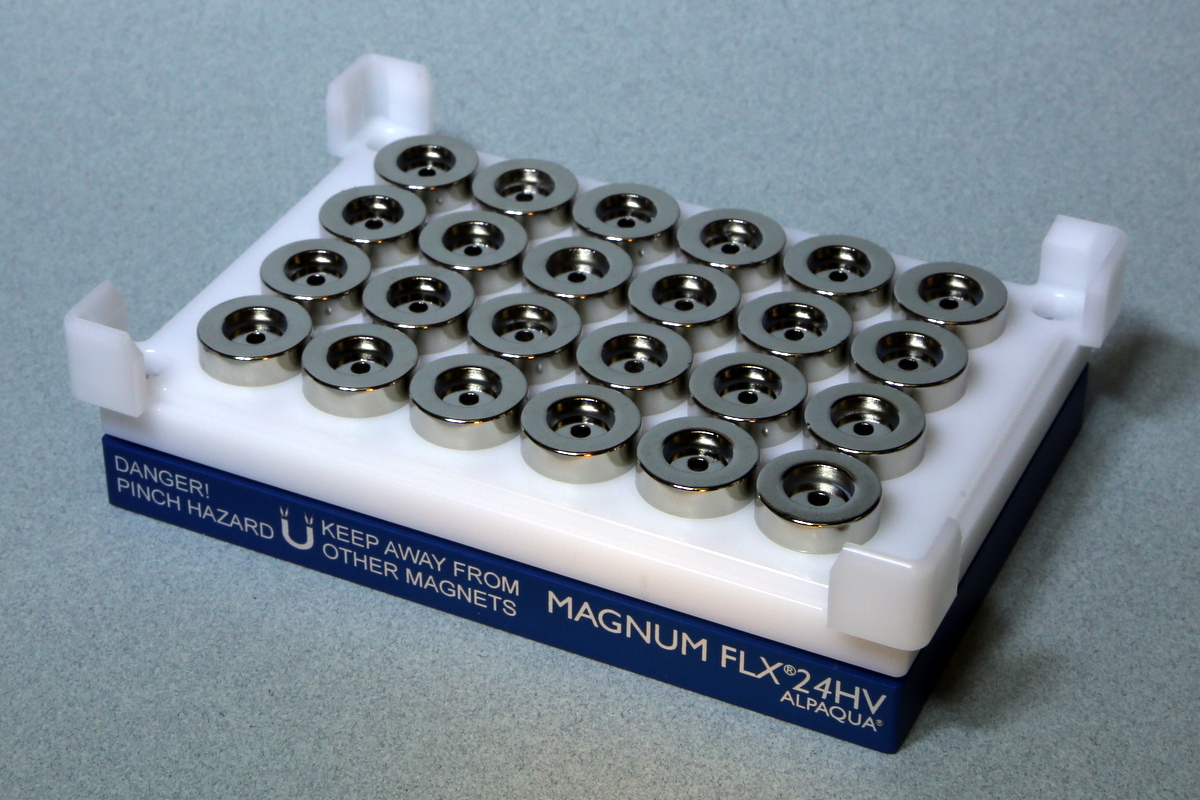

Magnum FLX?24HV

Universal 24-Well Magnet Plate通用24孔磁力板 SKU: A000640

Universal 24-well magnet plate especially designed for large, bead-rich extractions

通用24孔磁力板，專為大型，珠豐富的提取

Designed for large volume separations with high bead loads, the Magnum FLX24HV uses powerful concentric ring magnets to separate your most challenging reactions in 24-deep well plates.  It forms clear rings in the well bottom for ease of pipetting and minimum elution volumes of ca. 100 μl.

Compatible with round-bottom, V-bottom, and pyramid-bottom 24 well deepwell plates.

Magnum FLX24HV專為高頭負載的大體積分離而設計，使用強大的同心環形磁鐵在24深孔板中分離最具挑戰性的反應。它在井底形成清晰的環，便于移液，最小洗脫量約為100μl。

兼容圓底，v底，金字塔底24井深井板。

The sketch above shows the difference between the Magnum FLX24 (left) and the new Magnum FLX24HV magnet plates. While the Magnum FLX24 is optimized for low elution volumes, the larger ring formed in the Magnum FLX24HV provides more room in bead-rich reactions without leading to occlusion in the well center.

The Alpaqua Magnum FLX24HV contains a combination of our most powerful concentric NdFeB ring magnets capable of rapid and highly efficient magnetic bead separation from large volume or high viscosity solutions. Typical bead separation times are 30% faster than our standard ring magnets used in the MagPlate24.

In contrast to the Magnum FLX24 magnet plate, the inner ring magnet in the Magnum FLX24HV is recessed, causing the beads to settle around the outer, bigger ring magnet, as shown above. This leaves more room for bead-rich reactions to form a clear bead ring around the well perimeter without occluding the center, making supernatant removal easy and efficient. The minimum elution volume in this scenario is around 100 μl.

Like many other Alpaqua magnet plates, the Magnum FLX24HV magnet plate contains integrated spring cushion technology for improved automated pipetting consistency and sample recovery.

Built with PAQLOC? – ALPAQUA’s innovative spring cushion lock for easy manual pipetting. Patent Pending.

Key Features of the Magnum FLX?24HV

Isolation of cell free DNA (cfDNA) from serum and plasma

Large scale isolation of genomic DNA (gDNA) from whole blood, serum or plasma

Isolation of gDNA or RNA from viscous plant or animal lysates

Separation, isolation, or enrichment of cell populations from large liquid volumes using functionalized magnetic particles

上面的草圖顯示了馬格南FLX24(左)和新的馬格南FLX24HV磁鐵板之間的差異。雖然Magnum FLX24針對低洗脫量進行了優化，但在Magnum FLX24HV中形成的較大環為富珠反應提供了更多空間，而不會導致井中心堵塞。

Alpaqua Magnum FLX24HV包含我們最強大的同心釹鐵硼環形磁鐵的組合，能夠從大體積或高粘度溶液中快速高效地分離磁珠。典型的磁頭分離時間比我們?cè)贛agPlate24中使用的標準環形磁體快30%。

與Magnum FLX24磁鐵板相比，Magnum FLX24HV的內環磁鐵是凹陷的，導致珠子在外部更大的環形磁鐵周圍沉淀，如圖所示。這為富珠反應留下了更多的空間，在井周周圍形成一個清晰的珠環，而不會堵塞中心，從而使上清清除變得簡單高效。該場景下的最小洗脫體積約為100 μl。

與許多其他Alpaqua磁板一樣，Magnum FLX24HV磁板包含集成的彈簧緩沖技術，可提高自動移液一致性和樣品回收率。

內置PAQLOC?- ALPAQUA的創新彈簧緩沖鎖，方便手動移液。專利申請中。

Magnum FLX?24HV的主要特點

血清和血漿游離細胞DNA (cfDNA)的分離

從全血、血清或血漿中大規模分離基因組DNA

從粘性植物或動物裂解物中分離dna或RNA

用功能化磁顆粒從大體積液體中分離、分離或富集細胞群

Magnum FLX?24HV FAQs

Is the Magnum FLX24HV compatible with the 16 mm tube rack (A000260)?

Sadly, no. The center-to-center distance of the magnet plate is 18 mm (standard for 24 well plates), on the tube rack it is 20 mm. The tube rack was designed for 15 ml centrifuge tubes, and the threaded part of the tubes is 19.30 mm in diameter.

Magnum FLX?24HV常見問題

Magnum FLX24HV是否與16毫米管架(A000260)兼容?

很遺憾,沒有。磁鐵板的中心距離為18mm(標準為24孔板)，管架上的中心距離為20mm。管架設計用于15ml離心管，管螺紋部分直徑為19.30 mm。
